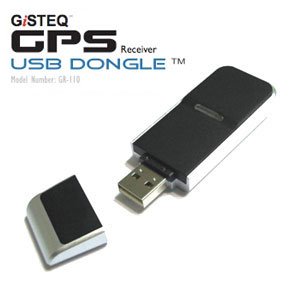

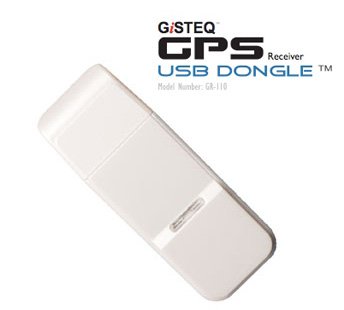

GiSTEQs USB GPS dongle is GPS receiver with a size of a USB drive. Its compact size makes it ultraportable for its users. As the rise of the Netbook, the demand of GPS-enabled computing is continuing to increase. With GiSTEQs USB GPS, user can easily add GPS function to their Netbooks, Eee PCs, UMPCs or Laptops for different applications. Its compatible with most desktop mapping software available in the market. Baud rate is adjustable for different purposes. It is also optimized for superb performance. The 65 parallel channels and the -160dBm sensitivity provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and the high sensitivity chipset, the USB dongle offers great performance even in urban canyons. AGPS and SBAS (WAAS, EGNOS) support are also available in the GPS unit. (*Mapping software not included.)
Readmore
Technical Details
- ***PLEASE CHOOSE FROM "BLACK" OR "WHITE" VERSION***- GPS navigation software is not included.
- GR-110 is a high performance, low power GPS receiver.GR-110 is a high performance, low power GPS receiver.
- The built-in SKYTRAQ chipset offers fast acquisition and excellent tracking performance.
- The compact size and built-in USB connector makes it an ideal travel companion with notebook PC and UMPC.
See more technical details
By C. chupp (GA USA)
This dongle comes preset to 38400 baudrate which is not compatible with most GPS software applications. The company will not respond to my email requests for support so I would definitely stay away from this product.
By Joel Newkirk (NC USA)
Pros: It's a compact, solidly-built USB dongle-style GPS receiver. Used under Ubuntu it works out-of-the-box with gpsd and Tangogps installed.
Cons: Accuracy is horrible. Example: In an open area it locks onto 7 satellites. In that same area the GPS on my cellphone (used as GPS device with Tangogps under Ubuntu, same computer same time same location same software) locks onto 5 - so far so good. But the FreeRunner [phone] GPS has pinpoint accuracy, while the GiSTEQ junker fluctuates by up to 1/4 mile!!
Mapping my commute resulted in abstract art, using it for turn-by-turn GPS navigation would be impossible. I travelled straight down a 4-lane highway at 45mph and the FreeRunner reported accuracy even as to which lane I was in while the GiSTEQ reports a lightning-bolt shaped path that varies by 2 blocks in either direction.
Also, the overlarge blinking LED (1/8" x 1/2") is obnoxious
By Jahanzeb M. Waziri (North Carolina, USA.)
Purchased on June 20, received today. I got the black version of this item. Plugged in and installed the drivers that came on the included CD without any problems. I bought this item to use with Microsoft Streets & Trips 2009. S&T requires GPS receivers to operate on NMEA 2.0 standard and at 4800 baud rate. The 4800 baud rate is a must if you are going to use this with S&T. That's where my problems started.
Although this item is NMEA 2.0 compliant, the default baud rate was set to 38400. S&T 2009 kept saying that either the data being sent/received by GPS receiver was not NMEA 2.0 compatible or the baud rate was incorrect. After a lot of browsing through different GPS forums did not help, I visited the GiSTEQ website. To my surprise, the Forums on the GiSTEQ website have no discussion area for the GPS USB dongle - even though there are (at the time of this review) discussion areas for other GiSTEQ products.
So I called the contact phone number listed on their website. I got to voicemail saying, "GiSTEQ Corporation is closed, please leave a message". This was at 4pm Eastern Time on a Monday. I started to suspect the credibility of GiSTEQ. I tried again 20 minutes later and this time a gentleman answered the phone. I explained the problem to him and he said that he would email me a tool to change the default baud rate to 4800. The email arrived shortly after the phone call, along with instructions on how to change the baud rate using the tool.
[...] Here's how to use the tool:
1. Plug in the device and make sure that drivers are installed. It should show in Device Manager under the "Ports (COM & LPT)" category as Prolific USB-to-Serial Comm Port (COM#).
2. Unzip the file you downloaded from the link above and run GPS Viewer executable file.
3. Select the right COM port (if you don't know the COM port you can find it in device manager, see #1).
4. Select 38400 as baud rate
5. Click the connect button, immediately to the right of Baudrate. It's titled "Close" for some reason.
6. When you see some codes appear in the Message section, you are ready to change the baud rate
Message should look something like this:
---,$GPRMC,013211.000,A,3355.2100,N,11754.9368,W,28.00,0.00,091206,,*26
---,$GPRMC,013212.000,A,3355.2183,N,11754.9369,W,29.00,0.00,091206,,*2E
---,$GPRMC,013213.000,A,3355.2266,N,11754.9369,W,29.00,0.00,091206,,*27
7. Go to Binary menu (next to File at the top left of the window)-> Configure Serial Port.
8. Change the baud rate to 4800 and click Set.
9. Make sure you see the message "Configure Serial Port Successful" in the Response window
10. You should now see that the baud rate has changed to 4800.
11. Click "Connect" button right next to Baudrate to disconnect.
12. Close the program.
Streets & Trips should work fine with your GiSTEQ GR-110 (aka GT-730F) USB GPS receiver. It works very well and finds 8-10 satellites even inside the house. Start up time is very fast.
Over all, it's a great product at a great price (got it new for $[...] + shipping). I just wish that this information was available to public on the GiSTEQ website.
